Every cable. Every port. Every rack. In one browser tab.
PatchMap is the network documentation tool for physical infrastructure — the virtual rack planner, patch-panel and cable-management app teams used to hand-roll in Visio. Map your estate, trace any cable end to end, print the patching matrix. Online in minutes, and free while we're in beta.
Built for the rack room, not the whiteboard.
Six things PatchMap does that a spreadsheet cannot.

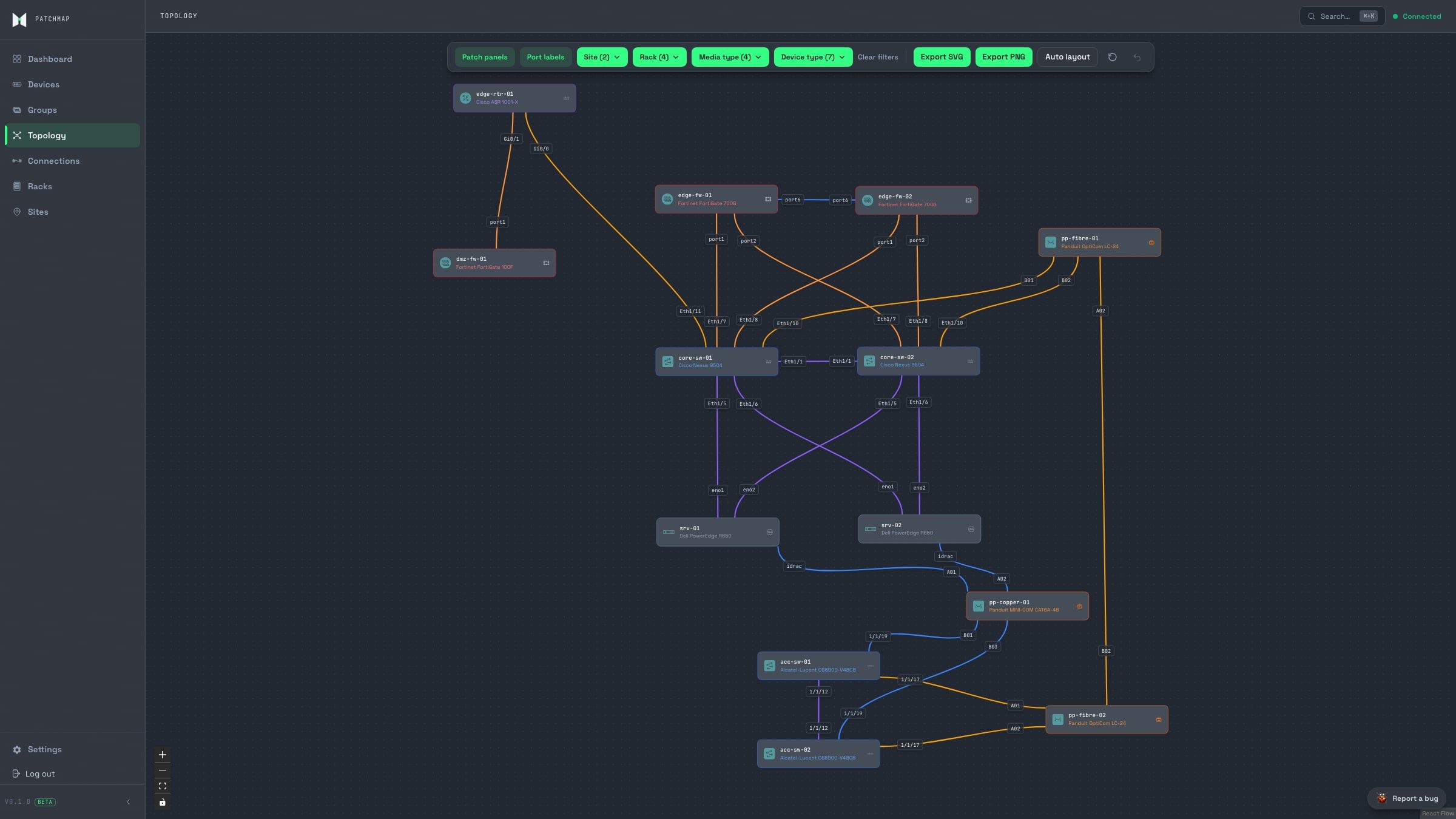

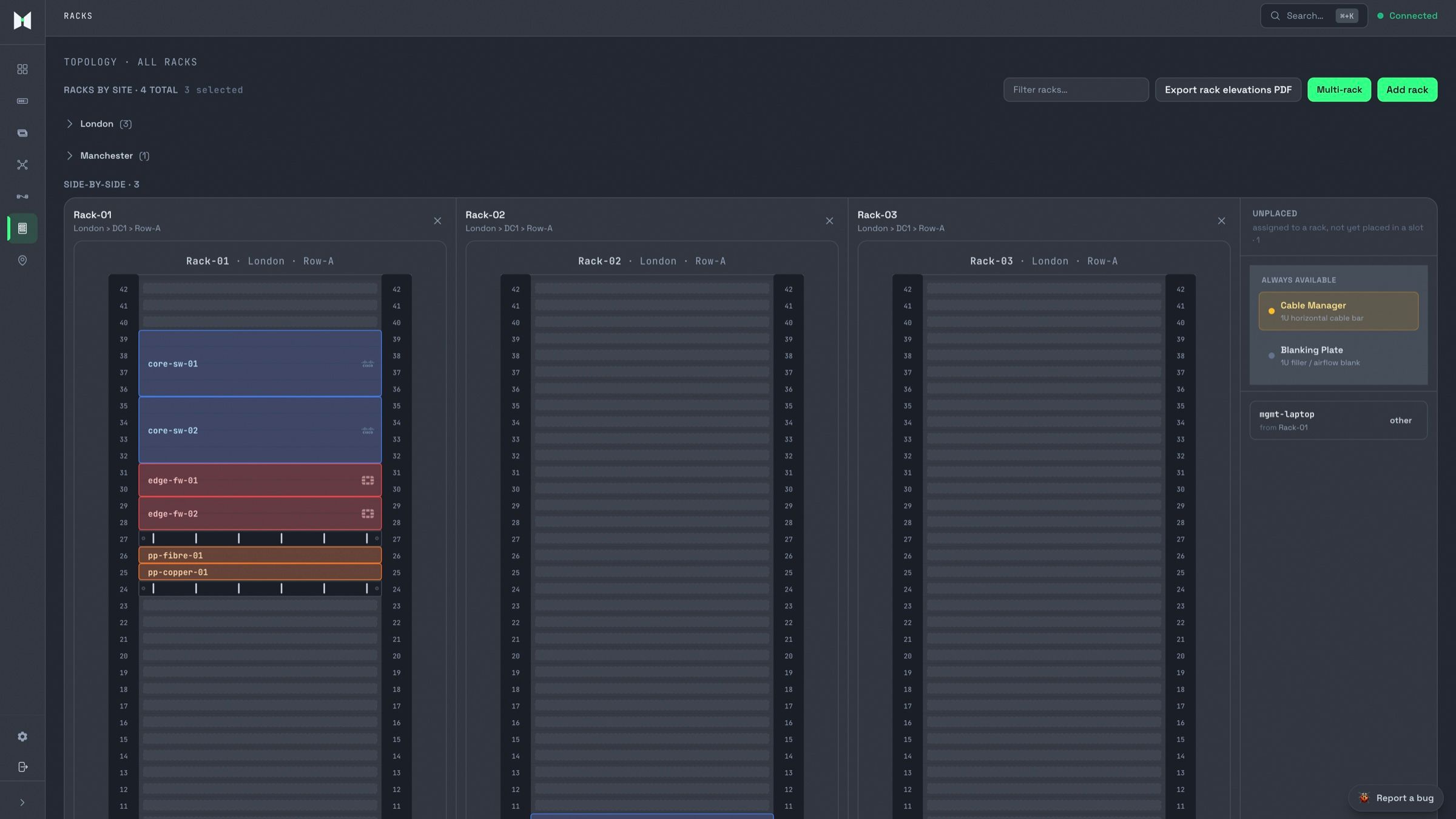

Racks + topology in one view
Most tools draw racks or they draw topology. PatchMap draws both, and walks the patch panels between them. End-to-end cable visibility from the rack elevation to the core switch.
See every cable
Trace any patch from rack to rack without leaving the browser. Cable IDs, port labels, and end-to-end paths, all queryable.
Know every port
Every device, every port, every label, mapped to the rack it lives in. Find a free port in seconds.

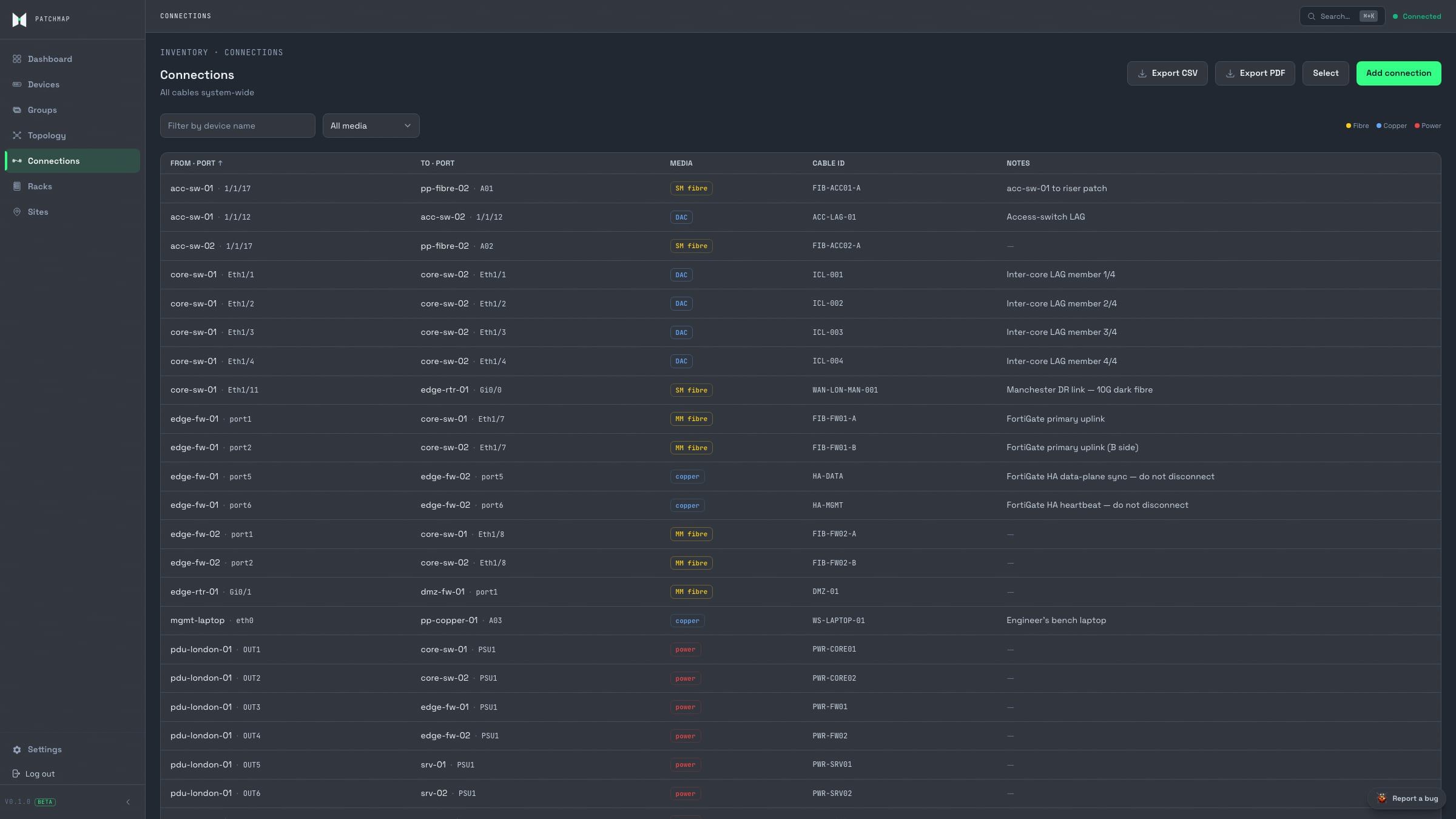

Export the patching matrix
Generate a print-ready checklist of every cable run: source device, source port, destination device, destination port, cable ID, media type. Hand it to the field tech and walk away.
Device templates
Define a vendor model once, with its full port layout, and drop instances anywhere in your estate. Cisco Nexus, Fortinet 700G, Panduit 48-port copper, your house templates — once configured, always reusable.
Stays in sync
Import once from device configs or CSV, then annotate as you work. Your network's source of truth, kept current. Your data lives in its own namespace.
Map your first rack in the next ten minutes.
Start freeThis isn't a preview. It's the app.
Click below to load the actual, live PatchMap instance right here on the page — the same app your team would use. Nothing to install, nothing to sign up for.
Add a switch. Get all 48 ports.
PatchMap ships with port templates for the gear that's already in your racks. Pick a model and its full port layout drops onto the canvas — speeds, media, and labels set, ready to patch. No hand-keying forty-eight rows. Can't find yours? Roll a house template once and reuse it across the estate.
Templated out of the box
- Cisco
- Juniper
- HPE Aruba
- Fortinet
- Arista
- Dell
- Ubiquiti
- SonicWall
- Palo Alto
- MikroTik
- Extreme Networks
- Huawei
- Check Point
- Sophos
- Brocade
- WatchGuard
- Netgear
- Alcatel-Lucent
How it works.
Claim your free instance
Drop your work email and claim your instance. It's free while we're in beta — claim yours now → PatchMap Cloud provisions a dedicated Postgres + FastAPI + React stack, UK-hosted, behind your own login. Online inside ten minutes. No credit card, no Kubernetes, no shared schema, no noisy neighbours.
Invite your team
Log in to your new instance, invite your colleagues, and start building. Map racks, devices, ports, and connections together — role-based access keeps your NOC, field techs, and admins each in their lane. Everyone working from the same live picture from day one.
Your source of truth
Day to day, PatchMap stays the single source of truth for your estate. ⌘K to jump to any device, port, or cable ID, and click any port to trace the cable end-to-end across patch panels and racks. Export a patching matrix to hand to the field tech or drop into the change record — documentation that's never stale, because it's generated straight from the live map.
Free while we're in beta.
Every feature, no credit card. £49/month at launch — and beta users keep founding-user pricing.
No Visio. No spreadsheets. No NetBox learning curve.
PatchMap does one thing properly: documenting the physical layer end to end. Here's what's in the box the moment you sign up.
- device models pre-built
- 260+
- vendors · 7,961 ports
- 18
- signup to first rack
- ~10 min
- while in beta
- £0
device models pre-built
vendors · 7,961 ports
signup to first rack
while in beta
Stop guessing where the cable goes.
Free while in beta · No credit card · UK-hosted · Online in minutes
